Dock Edge 10FT X 10FT Dock2Go DIY Floating Dock Kit
Dock Edge 10FT X 10FT Dock2Go DIY Floating Dock Kit
Regular price
$1,475.00 USD
Regular price
Sale price
$1,475.00 USD
Unit price
/
per

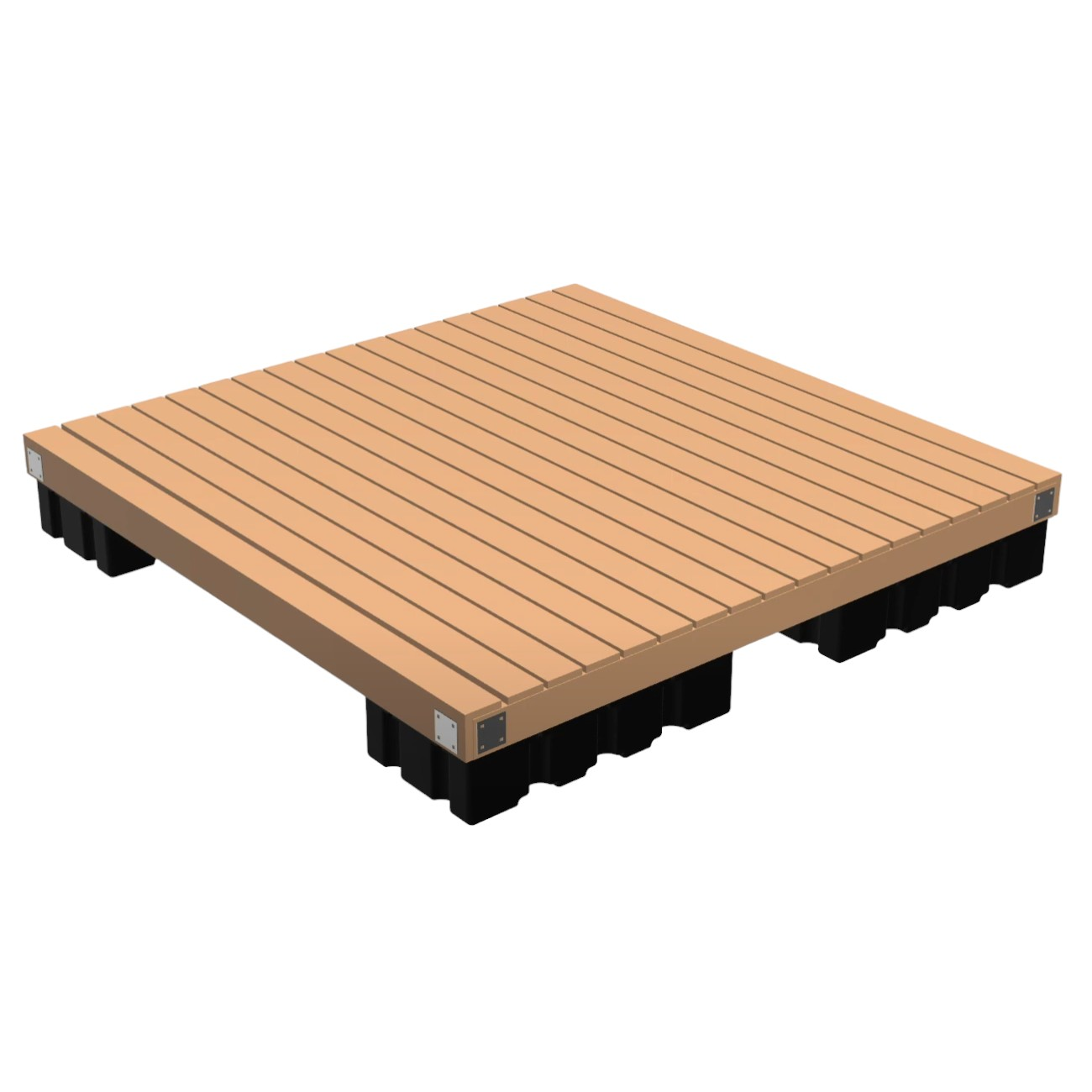

Dock Edge 10FT X 10FT Dock2Go DIY Floating Dock Kit
The Dock-2-Go PLUS Modular Dock Kit includes all heavy-duty, hot dip galvanized mounting hardware and floatation you need required to assemble a 10' x 10' (3.05m x 3.05m) modular floating dock. Each kit may be utilized to construct a stand-alone dock or may be attached to another Dock 2 Go section using a Dock 2 Go modular connector kit to increase dock length or width as required. Each kit may be utilized to construct a stand-alone dock or may be attached to another Dock 2 Go section using a Dock 2 Go modular connector kit (DE85205F) to increase dock length or width as required.
Kit Includes:
- 8 x backer plates DE93122F
- 4 x inside corners DE92104F
- 12 x joist corners DE99002F
- 28 x washer plates DE99006F
- 2 x chain retainers DE99013F
- 5 x Howell 550 floats DE99246F
- 11 x hardware fastener kit DE85100F
- 5 x float fastener kit DE85125F
Lumber & Screws Required:
Recommended Tools:
- Mitre saw or table saw
- Drill or impact driver
- Tape measure
- Adjustable wrench
- Socket set 1/2"
- Wood drill bit 5/8"
- Drill bit for lag bolt 1/2"
- Pilot Screws for framing
Resources:

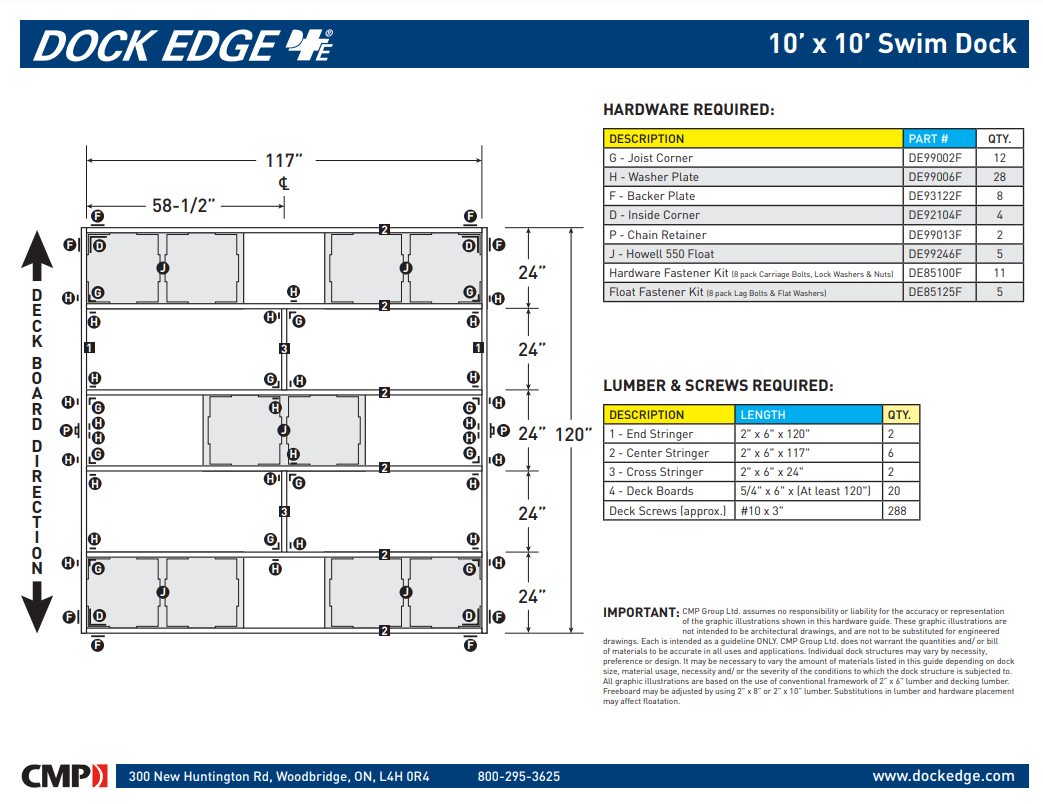

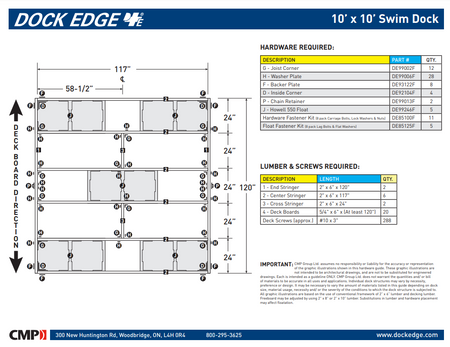

Floating Dock Assembly Guide 10FT X 10FT
Instructional Video
Helpful Tips Video
