Dock Edge+ 6FT X 12FT Dock2Go DIY Floating Dock Kit with Floats
Dock Edge+ 6FT X 12FT Dock2Go DIY Floating Dock Kit with Floats
Regular price
$1,105.05 USD
Regular price
Sale price
$1,105.05 USD
Unit price
/
per
Dock Edge+ 6FT X 12FT Dock2Go DIY Floating Dock Kit with Floats

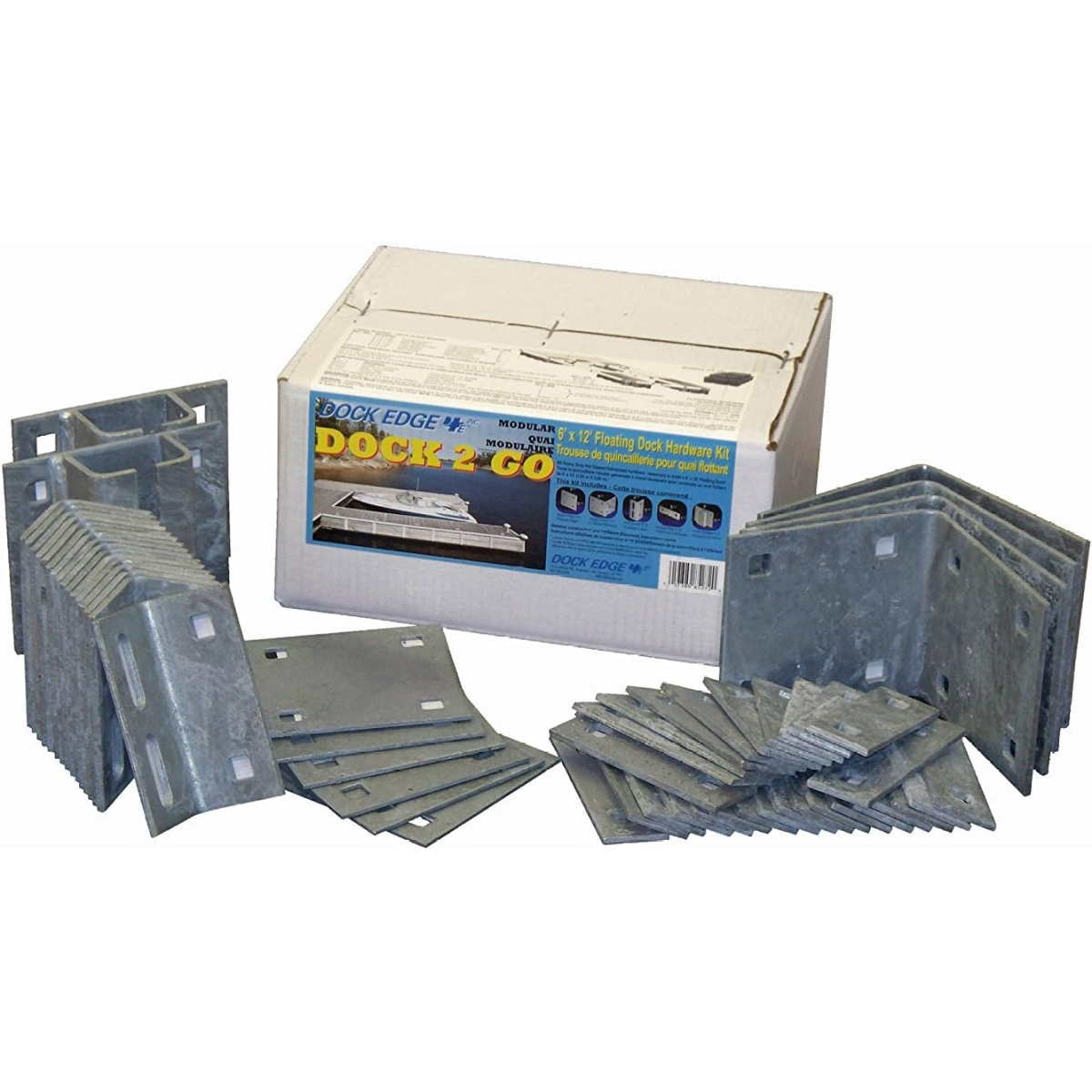

The Dock Edge+ Dock 2 Go Modular Dock Kit includes all heavy duty hot dipped galvanized mounting hardware required to assemble a 6' x 12' modular floating dock section. Each kit may be utilized to construct a stand-alone dock or may be attached to another Dock 2 Go section using a Dock 2 Go modular connector kit (DE85205F) to increase dock length or width as required.

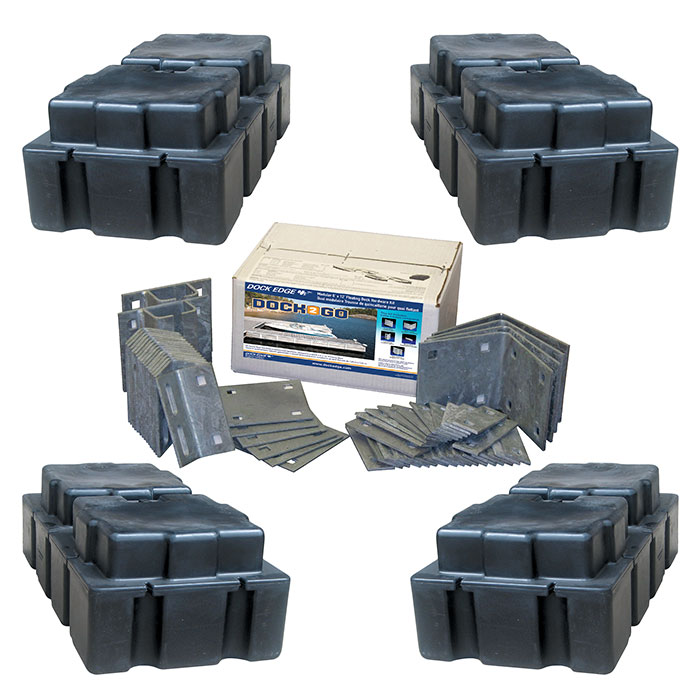

Kit Includes:
- 8 x backer plates DE93122F
- 4 x inside corners DE92104F
- 2 x chain retainers DE99013F
- 12 x joist corners DE99002F
- 28 x washer plates DE99006F
- 4 x Howell 550 floats DE99246F
Please note: Hardware fastener kits x 11 DE85100F & float fastener kit x 5 DE85125F are not included in this kit order separately.
Lumber & Screws Required:
Recommended Tools:
- Mitre saw or table saw
- Drill or impact driver
- Tape measure
- Adjustable wrench
- Socket set 1/2"
- Wood drill bit 5/8"
- Drill bit for lag bolt 1/2"
- Pilot Screws for framing
Resources:

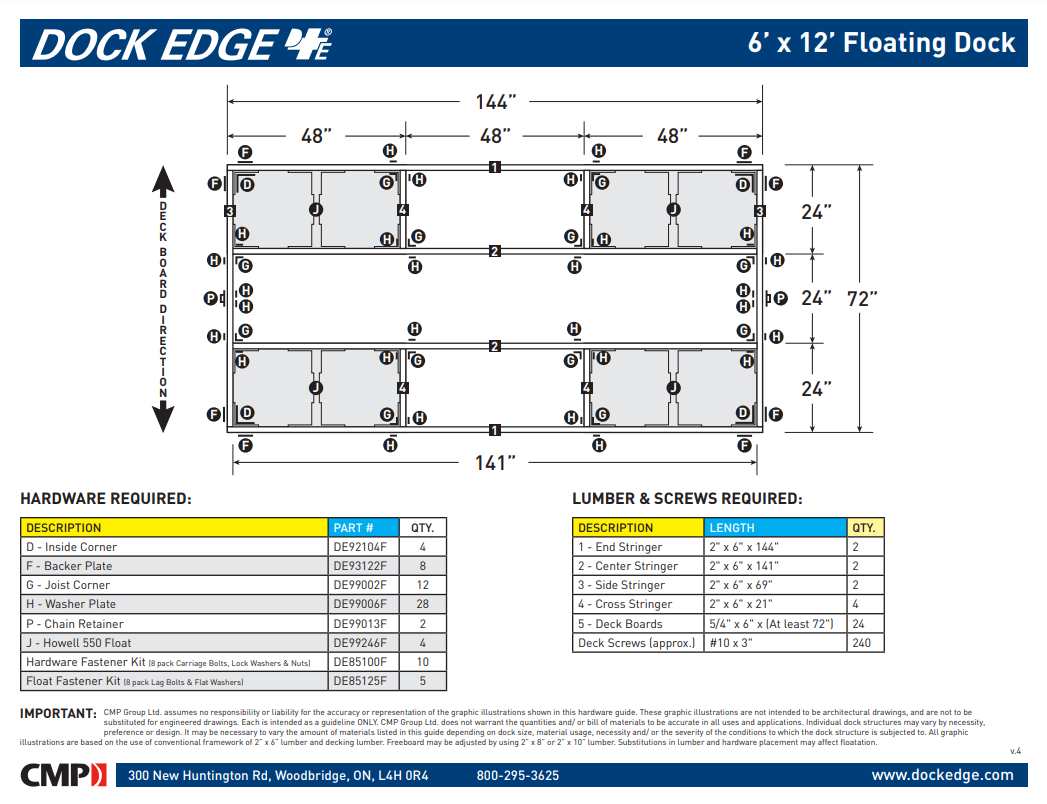

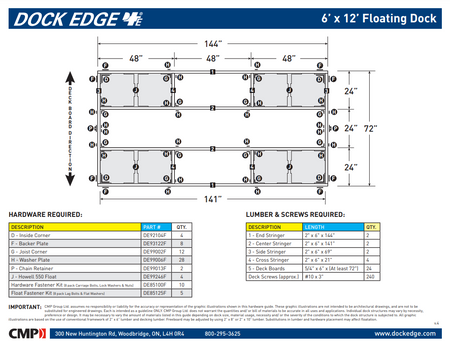

Floating Dock Assembly Guide 6FT X 12 FT
Instructional Video
Helpful Tips Video
